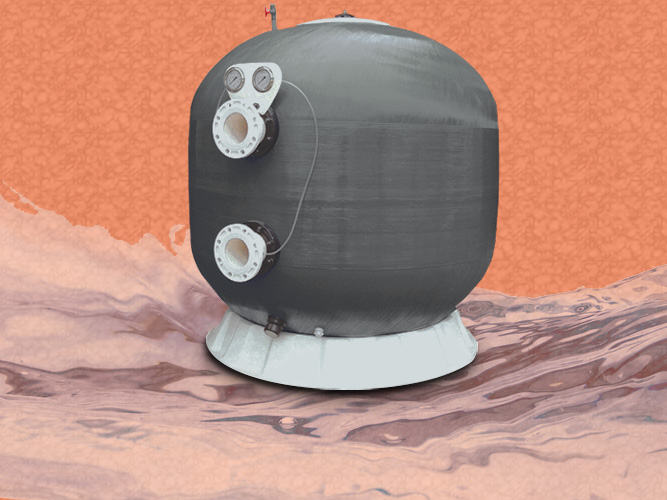

2,35 M Commercial Sand Filter

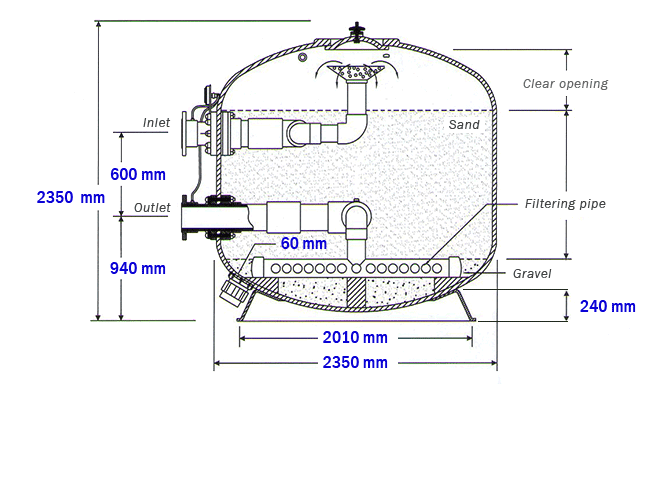

Spesifikasi teknis filter pasir kolam renang tipe FCG2350

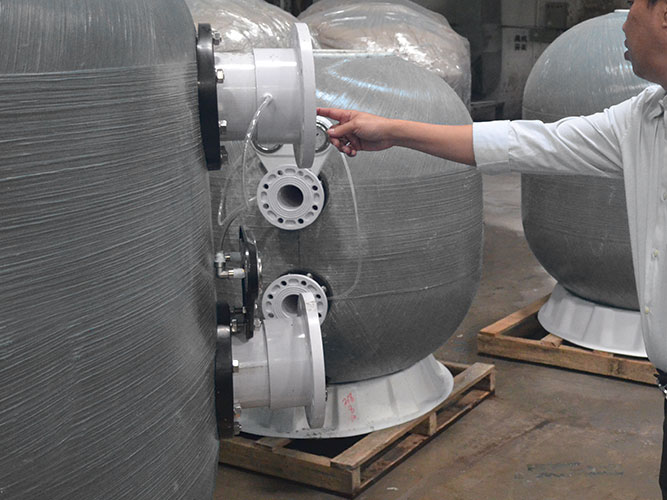

Bobbin Kapasitas 5275 Kg
Butterfly Valve for Commercial Filter
Commercial sand filter
ukuran
Bobbin 5000Kg
Butterfly valve

FCG 2350 Hi-Rate FILTER

Design flow : 175 m3/h



features:

  • Built to be tougher, longer lasting and better performance
  • Constructed of polyster resin and non-corrosive fiberglass filament.
  • All internal components and connections are injection molded PVC.
  • UV resistance surface allows working under sunshine

specification:

  • Filter area : 4,34 m2
  • Design flow : 175 m3/h
  • Standard volume : 14,6 m3
  • Sand weight : 5275 Kg
  • Gravel weight : 1800 Kg
  • Standard weight : 538 Kg
  • Pipe size : 8 inch
  • Maximum working pressure 36 psi/2,5Kg/cm2
  • Maximum temperature: 50°C
Swimming pool sand filter kapasitas besar untuk kolam renang publik
