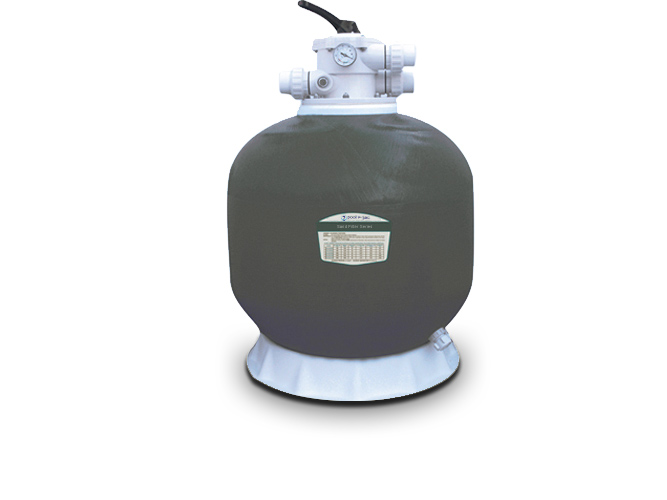

FHT 700 SAND FILTER
Design flow : 20 m3/h
features:
- 6 position valve: FILTER - BACKWASH - RINSE - WASTE - RECIRCULATE - CLOSE
- Clamp lock is designed to allow 360 degree rotation to simplify installation
- Special drainage design, to easy draining of the tank, easy to maintain and ice-free in winter
specification:
- 0,40 m2 filter area
- Design flow : 20 m3/h
- Tank volume : 0,42 m3, up to 220 Kg sand
- Pipe size : 1,5 inch
- Max working pressure : 250 kPa
- Max temperature : 50 °C
- Max Velocity : 50 m3/h/m2
